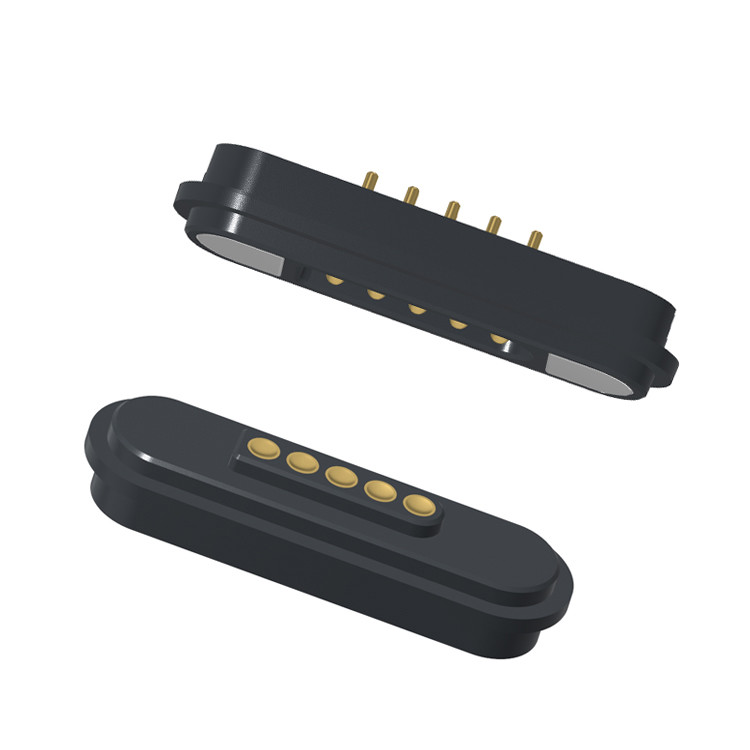

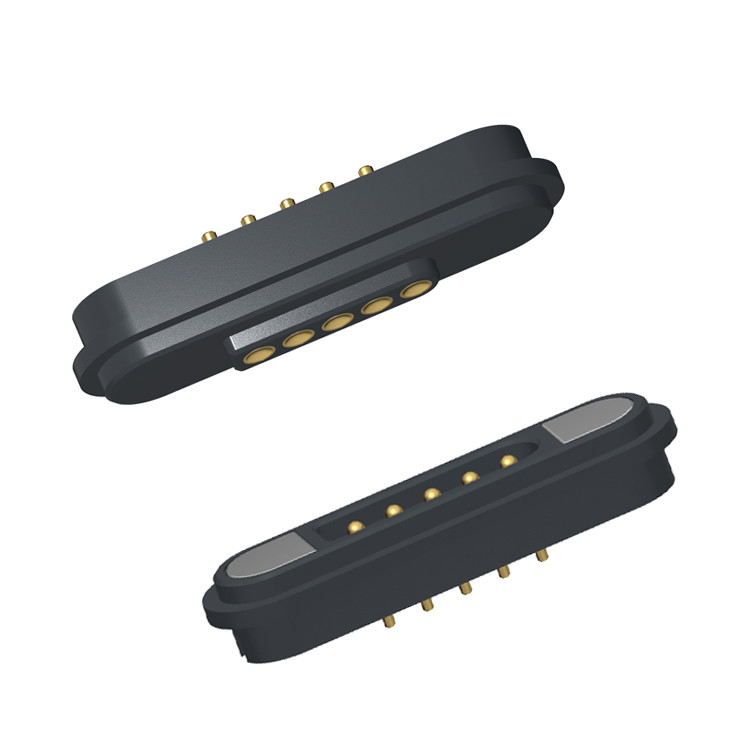

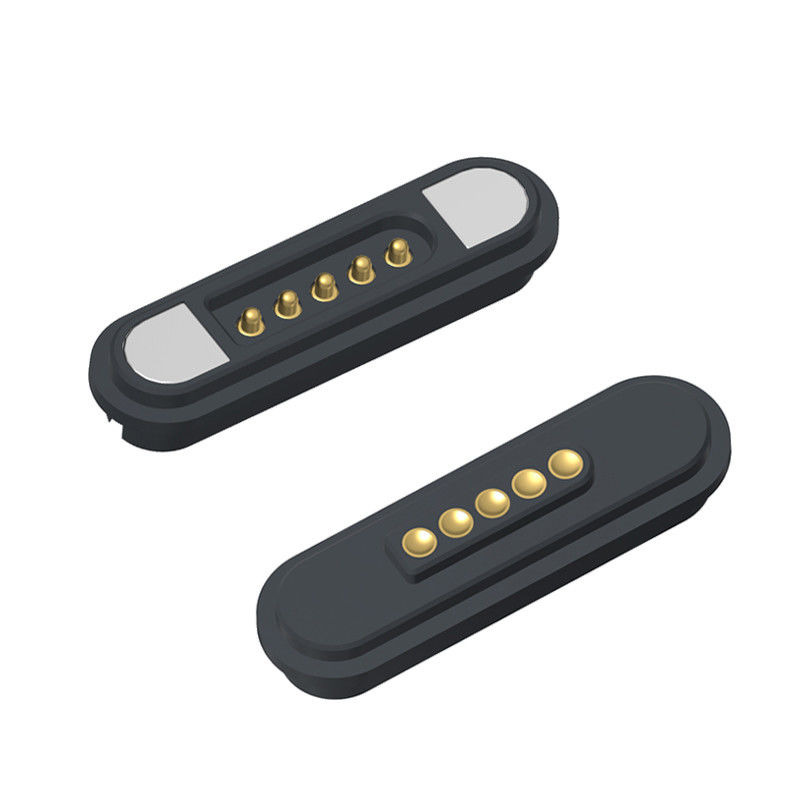

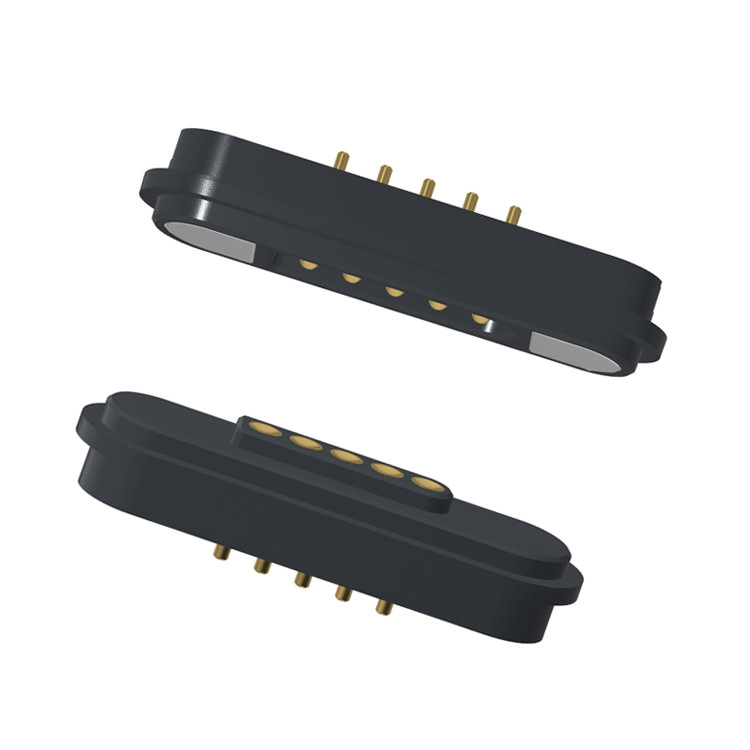

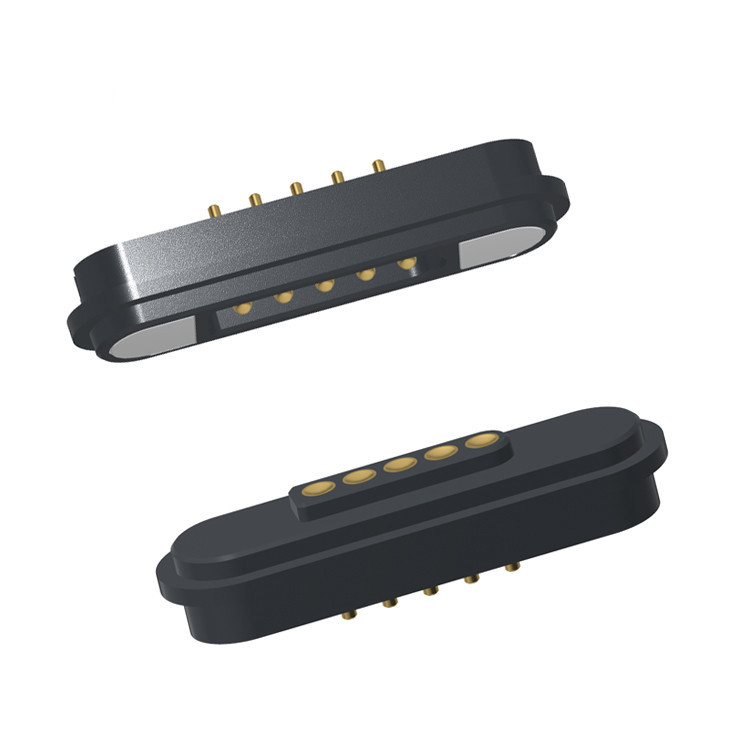

2.2MM Pitch 5Pin Male Female Pogo Pin Electrical Magnetic Connectors 3A Current

2.2MM Pitch 5Pin Male Female Pogo Pin Electrical Magnetic Connectors 3A Current.

UPE – Professional Magnetic Connector & Cable Solutions Manufacturer

Customized Design | Reliable Performance | End-to-End Solutions

At UPE, we specialize in designing and manufacturing high-quality magnetic connectors and magnetic cable connectors, tailored to meet your specific requirements. With our in-house team of expert engineers and designers, we deliver innovative, precision-engineered solutions for diverse industries, including consumer electronics, medical devices, IoT, and industrial applications.

To ensure the contact mechanical life of the pogo pin, NEVER compress it beyond the defined working stroke specified in the drawing. Over-compression can damage the internal spring, leading to reduced performance or failure.

Materials:

Housing: Black HTN UL94V-0

Pogo Pin: Brass C6801 Plating Au 0.125um
Female pin: Brass C6801 Plating Au 0.125um
Magnet: N52 NdFeB Plating Ni Cu Ni

HTN Housing (UL94V-0): Suitable for high-temperature environments and meets flammability safety standards.

Brass C6801 Pins: Good machinability and conductivity; gold plating enhances durability and contact resistance.

N52 Magnet with Ni-Cu-Ni Plating: High magnetic strength (N52 is the strongest commercial grade) with corrosion-resistant plating.

Mechanical:

Contact force:80g±20g at 1.0mm working storke

Full storke: 1.1mm

Male and female adsorption Life test: 10,000cycle

Electrical:

Rated voltage:DC12V; Rated voltage: 3AMax.

Contact resistance of spring pin: 50 milliohm Max.

Environmental performance:

Operation Temperature: -25℃ to +80℃

Environmental Test: Salt Spray 24 hours

5Pin Male Magnetic Connectors & Female Magnetic Connector Parameter:

5Pin Male Magnetic Connector Technical Drawing

5Pin Female Magnetic Connector Technical Drawing

Advantages of Magnetic Connector:

1. Effortless Connectivity
✔ Automatic Adsorption – Smart, user-friendly design enables instant and secure connections with magnetic alignment.
✔ Anti-Fall Protection – Easily detaches from the charging interface while keeping devices stable, reducing accidental drops.

2. Unmatched Durability
✔ Extended Lifespan – Rated for 100,000–200,000 cycles, ensuring long-term reliability.
✔ IPX8 Waterproof & Dustproof – Female end designed for harsh environments (submersion up to 1M for 30 mins).

3. High-Performance Charging & Data Transfer
✔ Fast Charging (5A–10A) – Supports high-current transmission for rapid power delivery.
✔ High-Speed Signal Transmission – Replaces traditional USB 2.0/HDMI 1.3, enabling Video/Audio signal transmission with stable high-frequency performance.

4. Customizable & Safe Design
✔ Aesthetic Flexibility – Tailored appearance to match your device’s design language.
✔ Anti-Short Circuit & Foolproof – Built-in protection against misuse and electrical faults.

Magnetic connector products application:

Why UPE shall be your partner?

1. Professional customization service
2. Fast sample production capability
3. Strict quality control system
4. Processing with imported components
5. High-precision test equipment
6. Reasonable cost control procedures
7. Product environmental standards

How to Place Your Magnetic Connector Order with UPE

1. Submit Your Requirements
Provide details such as:

.Connector type (power, data, hybrid, waterproof, etc.)

.Voltage & current ratings

.Cable length & specifications

.Magnetic polarity & alignment preferences

.Quantity & lead time

Special requirements (IP rating, shielding, certifications, etc.)

. Option 1: Fill out our RFQ (Request for Quote) Form on our website.
. Option 2: Email your specs directly to sunion@upetech.net (or your designated contact).

2. Receive a Custom Quote
Our engineering team will review your requirements.

We’ll provide a competitive quote, including:Pricing/Lead time/Prototyping options (if needed)

3. Approve & Confirm Order
Once the quote is approved, we’ll finalize the design & production schedule.

For new designs, we may offer 3D models or samples for testing.

4. Production & Quality Assurance
UPE manufactures your order with strict quality control checks.

We can provide test reports & certifications upon request.

5. Fast Delivery & Support
Your order ships via your preferred logistics method (DHL, FedEx, sea freight, etc.).

Our team remains available for technical support & future orders.

Payment Term:

50% Deposit (Paid upfront): Covers production costs (materials, labor).

50% Balance (Paid before shipment): Ensures quality control and commitment from both parties.

Payment method:

T/T (Bank Transfer),PayPal ,OCBC Bank

Recommendation:

Use PayPal for samples (safer).

Use T/T for bulk orders (lower fees).

Sample Lead Time: Inventory sample 2-3Working day/customized sample 5-7Working day

Production Lead Time:10-15Working day

Made For: America,Europe,Asia,South African

Trade Term: EXW

Freight: Air,Sea,Express

Service: High quality with reasonable price, OEM service, any special size, color, designs are acceptable
